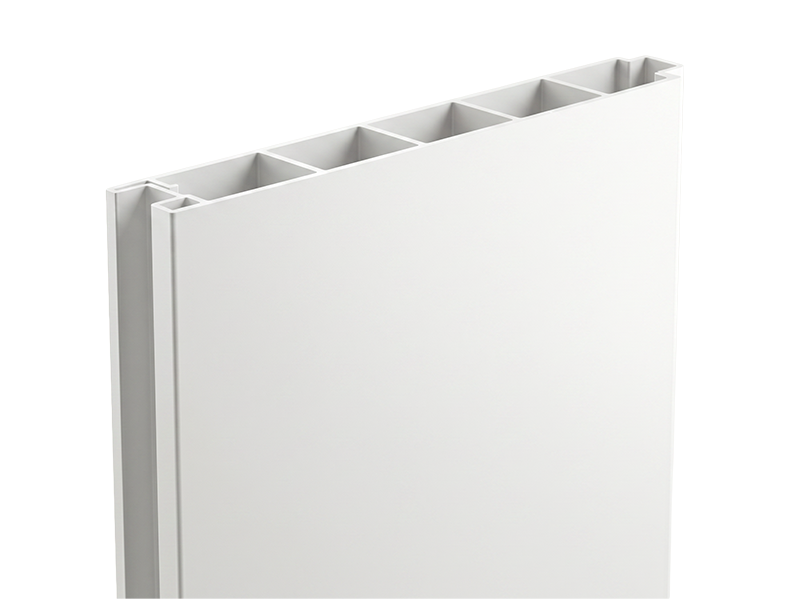

Wall Panel

Wall Panel

The Luxwood Wall Panel is the core structural component of the PHE building system, used for both wall and floor applications across all modular structures.

Key Features

  • Manufactured using over 90% post-industrial recycled materials
  • Fully recyclable at the end of its lifecycle
  • Engineered for structural strength and durability
  • Provides resistance to moisture, pests, and environmental conditions

Why It Matters

The panel system eliminates the need for traditional framing, enabling faster construction while maintaining consistent structural performance.

Wall Panel
1

Fire & Smoke Retardant

  • The flame retardant and smoke preventative additives in the recipe can effectively stop the wall panel being ignited.
  • Test reports show fire resistance of the wall panel will exceed two hours and non-combustable Grade-A product under EN standards.
2

Environmentally Friendly

  • The limits of radio-nuclides formaldehyde content in panel forms no hard to health of humans or animals.
  • The panel is recyclable and can be granulated back into product many years after used and therefore no construction waste has been created.
3

Construction Savings

  • Wall construction reduces or even eliminates the need of steel structure.
  • Reduces the need for heavy lifting equipment for construction.

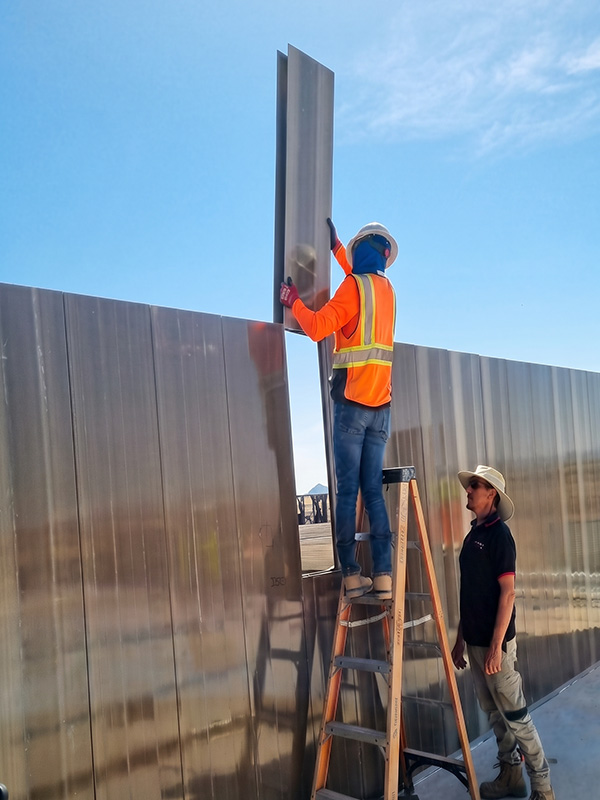

  • Wall panels can be installed faster, compared to traditional building processes.
  • Wall construction is 70% – 80% quicker, results in saving of 80% in labor costs.
4

Maximizes Internal Space

  • The wall has excellent performance and takes up less space than the traditional wall, enlarging the effective internal space.
  • Overall of 10% space saved in a 12sqm room
5

Energy Savings & Heat Prevention

  • Wall panel has a 0.3 [W/(m2.K)] heat index
  • Compared to: Kiln fired hollow bricks or concrete block construction heat index is 0.5 - 0.6[W/(m2.K)]
6

Durability & Light Weight

  • Wall panels weight less than 60 kg/m2
  • Each panel (150*450*2800mm) can withstand a 328KN compressed load vertically.
  • Low self-weight offers quake-proof property and reduces risk in earthquake zones.
  • Compared to: Kiln fired hollow bricks or concrete block construction is 3 - 4 times the weight of the Wall panels

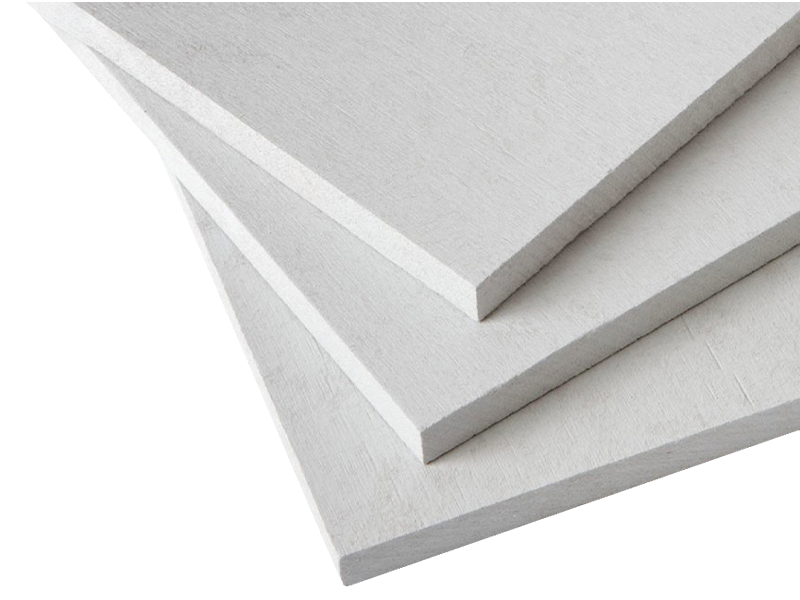

Polex Board & Internal Sheets

Interior and structural support materials designed to complement the Luxwood system, providing additional flexibility in construction and finishing.

Key Features

  • Lightweight and easy to install
  • Compatible with modular panel systems
  • Supports interior partitioning and finishing applications

Doors & Windows

Built for lasting performance, our doors and windows combine durability, weather resistance, insulation, and reliable everyday functionality.

PANEL COMPOSITE DOORS

  • Waterproof
  • Pest Proof
  • Strong and long lasting
  • No shrinkage or swelling
  • Various patterns and styles
  • As strong as solid wood door

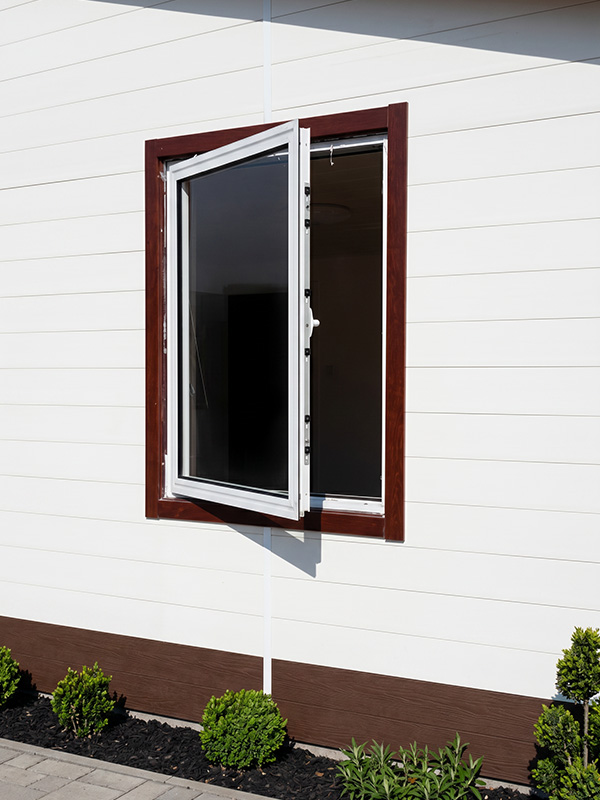

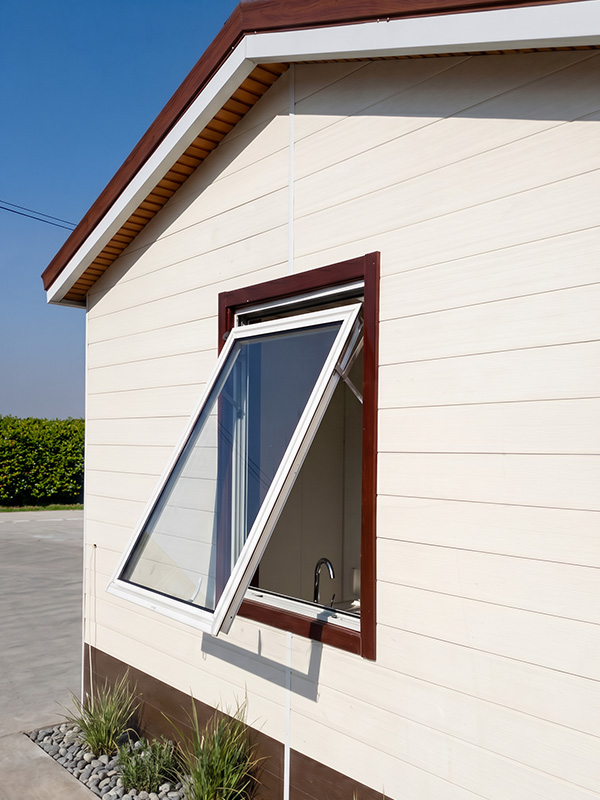

Windows

  • Sourced from outside supplier in Plastic or Aluminium
  • Good heat insulation performance
  • Excellent air proof and waterproof property
  • Window pane is Argon filled double-glazed to improve heat and sound insulations of entire...
  • Constructed to NZSAS standards
